Products

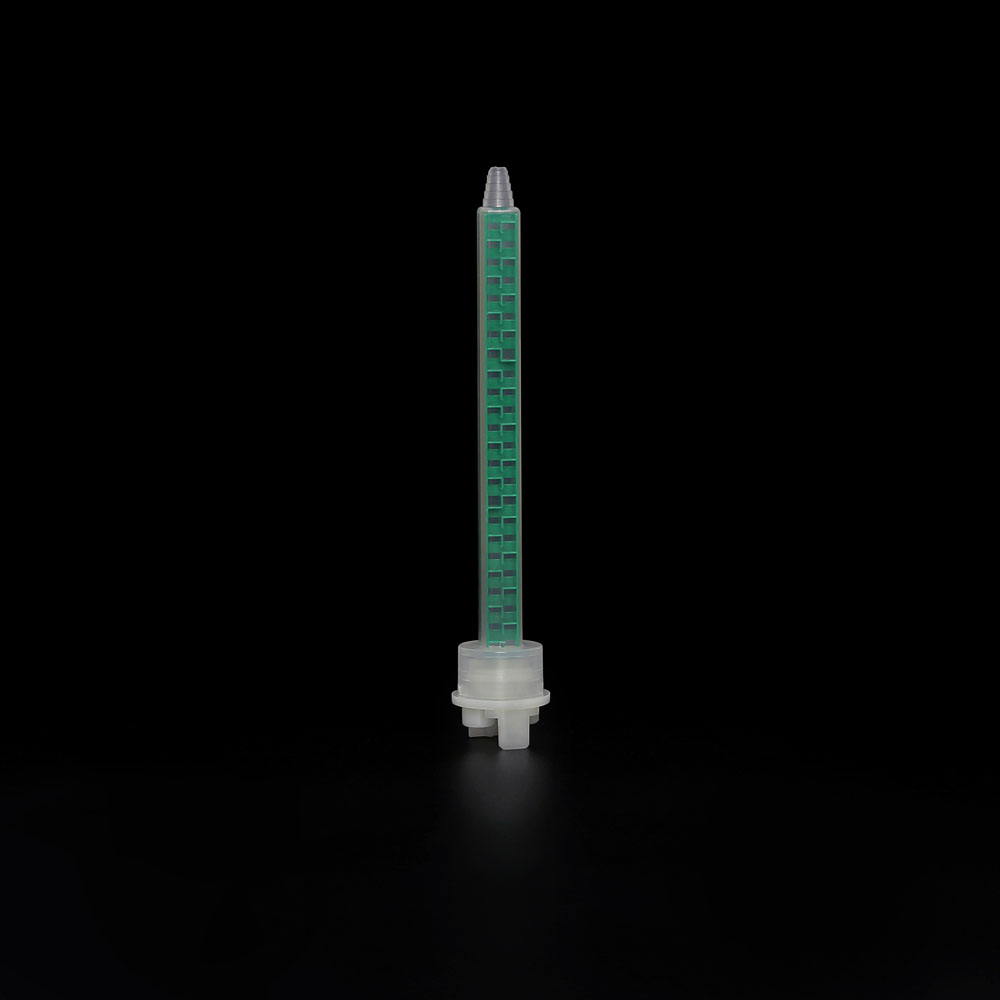

MFQ07-24T
| Part Number | Inner Diameter (mm) | Outer Diameter(mm) | No. of Sections | Length (mm) | Caliber (mm) | Snap-In Connection | Ratio |
| MFH06-24T | 6 | 9.77 | 24 | 194.92 | 1.91 | Snap-In Connection | 1:1 |
| MFH08-18T | 8 | 11.83 | 18 | 186.86 | 2.58 | Snap-In Connection | 1:1 |
| MFH10-18T | 10 | 14 | 18 | 222.56 | 3.2 | Snap-In Connection | 1:1 |
| MFH10-24T | 10 | 13.88 | 24 | 280.56 | 3.18 | Snap-In Connection | 1:1 |
| MFHX06-24T | 6 | 9.77 | 24 | 194.58 | 1.88 | Snap-In Connection | 10:1 |
| MFHX08-18T | 8 | 11.83 | 18 | 186.99 | 2.6 | Snap-In Connection | 10:1 |
| MFHX10-18T | 10 | 13.89 | 18 | 222.44 | 3.04 | Snap-In Connection | 10:1 |
| MFHX10-24T | 10 | 13.81 | 24 | 280.62 | 3.05 | Snap-In Connection | 10:1 |
| MFHX13-18T | 12.47 | 16.86 | 18 | 234.61 | 3.99 | Snap-In Connection | 10:1 |
| MFQ05-16L | 5 | 7.62 | 16 | 100.11 | 2.09 | Snap-In Connection | 1:1 |
| MFQ05-24L | 5 | 7.54 | 24 | 130.85 | 1.66 | Snap-In Connection | 1:1 |
| MFQ07-24T | 7.65 | 9.94 | 24 | 136.01 | 3.11 | Snap-In Connection | 1:1 |
| MFQ08-24T | 8.7 | 13.81 | 24 | 154.95 | 3.08 | Snap-In Connection | 1:1 |
| MFQ10-24T | 10 | 14.05 | 24 | 180.55 | 3.6 | Snap-In Connection | 1:1 |
| MFQX05-16L | 5 | 7.6 | 16 | 100.07 | 1.97 | Snap-In Connection | 10:1 |
| MFQX05-24L | 5 | 7.52 | 24 | 130.73 | 1.7 | Snap-In Connection | 10:1 |
| MFQX07-24T | 7.65 | 9.87 | 24 | 135.84 | 3.06 | Snap-In Connection | 10:1 |
| MFQX08-24T | 8.7 | 11.3 | 24 | 155.13 | 3.02 | Snap-In Connection | 10:1 |
| MFQX10-24T | 10 | 14.2 | 24 | 180.48 | 3.6 | Snap-In Connection | 10:1 |
